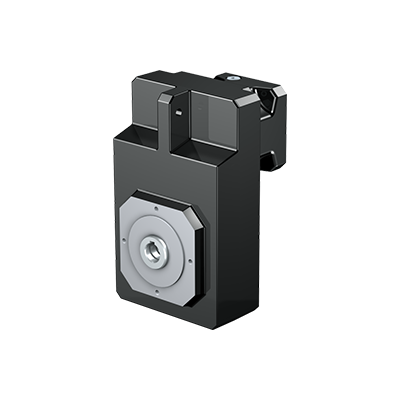

F Series
Flat gear unit housing with large shaft-centre distance. Helical gearing. Two backlash versions. Hollow or solid shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.
  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft Designs


- Solid shaft with key
- Solid shaft without key
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs


- Pitch circle diameter
- Round flange
- Square flange
- Pitch circle diameter + side fastening
Backlash


- Standard
- Class II
Mounting Positions


- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance


- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
- Lubricated for life
- Maintenance-free
Paint Finish


Black RAL 9005
Motor Adapter ME


- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Integrated EasyAdapt® clamp coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop


- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type

Ratio

Max. perm. acceleration torque [Nm]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

F102

4.3 – 140

78 – 120

5000 – 6000

6 – 11

5.8 – 7.7

F202

4.7 – 141

84 – 270

4000 – 6000

6 – 11

12 – 18

F203

184 – 552

270

6000

7 – 11

18

F302

4.6 – 141

155 – 450

4000 – 6000

6 – 11

17 – 22

F303

182 – 551

450

5000 – 6000

7 – 11

22

F402

4.7 – 140

241 – 700

3500 – 5000

5 – 10

34 – 39

F403

182 – 547

700

5000 – 5500

6 – 10

39

F602

4.5 – 140

301 – 1100

3500 – 5000

5 – 10

57 – 77

F603

181 – 540

1100

5000

6 – 10

77
