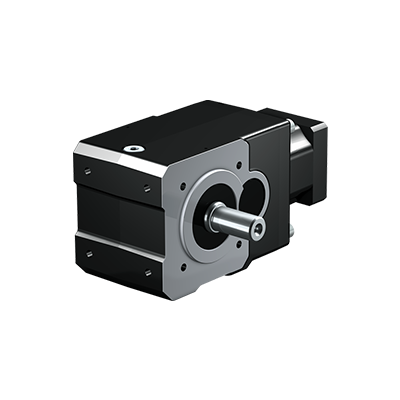

KL Series
Small angular gear unit. No offset. Compact. Two-stage. Ratio 4 - 32. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.
  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft design

- Solid shaft with key
- Solid shaft without key
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs

- Pitch circle diameter
- Flange
- Foot + pitch circle diameter
Mounting Positions

- Any mounting position.
Lubricants and Maintenance

- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
- Lubricated for life
- Maintenance-free
Paint Finish

Black RAL 9005
MQ Motor Adapter

- Universal motor mounting system for almost all synchronous servo motors.
- Fast and secure motor mounting.
- Backlash-free plug-in coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
MQ Motor Adapter
Recommendation Motor

EZ synchronous servo motors

For further information see Synchronous Servo Motors

Type

Ratio

Max. perm. acceleration torque [Nm]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

KL102

4 – 32

22 – 32

5000 – 6000

20 – 25

0.99 – 1.8

KL202

4 – 32

50 – 65

5000 – 6000

16 – 20

1.8 – 3.9
