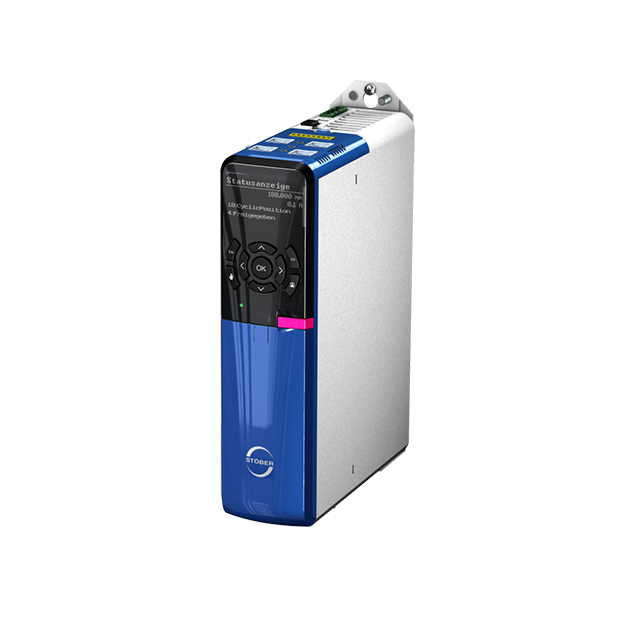

SD Series
High performance and flexibility. Perfect precision control of servo axes equipped with encoders digital (optional on EZ synchronous servo geared motors). Allows about 33 million positions per revolution to be determined. Best control performance with 32-bit Dual-Core processor STO non-wearing electronic safety function (developed jointly with Pilz GmbH & Co. KG).
- 产品简介
- 产品特点
- 产品规格
- 产品尺寸
- 资料下载
High performance and flexibility. Perfect precision control of servo axes equipped with encoders 2.2 digital (optional on EZ synchronous servo geared motors). Allows about 33 million positions per revolution to be determined. Best control performance with 32-bit Dual-Core processor STO non-wearing electronic safety function (developed jointly with Pilz GmbH & Co. KG).
| Type | Size | Nominal output current (4 kHz) [A] | Max. output current (4 kHz) [A] | Nominal output current (8 kHz) [A] | Max. output current (8 kHz) [A] | Dimensions [mm] |
|---|---|---|---|---|---|---|
| SD6A02 | 0 | 4 | 7,2 | 3 | 7,5 | 300 x 70 x 194 |
| SD6A04 | 0 | 2,3 | 4,2 | 1,7 | 4,3 | 300 x 70 x 194 |
| SD6A06 | 0 | 4,5 | 8,1 | 3,4 | 8,5 | 300 x 70 x 194 |
| SD6A14 | 1 | 10 | 18 | 6 | 15 | 300 x 70 x 284 |
| SD6A16 | 1 | 16 | 28,8 | 10 | 25 | 300 x 70 x 284 |
| SD6A24 | 2 | 22 | 39,6 | 14 | 35 | 300 x 105 x 284 |
| SD6A26 | 2 | 32 | 57,6 | 20 | 50 | 300 x 105 x 284 |
| SD6A34 | 3 | 44 | 79,2 | 30 | 75 | 382,5 x 190 x 303 |
| SD6A36 | 3 | 70 | 126 | 50 | 125 | 382,5 x 190 x 303 |
| SD6A38 | 3 | 85 | 153 | 60 | 150 | 382,5 x 190 x 303 |
